Customized Lab Work Bench Steel Wood Modular Lab Table For University School Hospital Living Room

Name: Customized Lab Work Bench Steel Wood Modular Lab Table For University School Hospital Living Room
Brand: WINLAB®
Price: 300 USD

Wholesale Customized Lab Work Bench Steel Wood Modular Lab Table For University School Hospital Living Room from china suppliers

general use : Commercial Furniture

Design Style : Modular & Ergonomic

mail packing : N

MOQ : 1 Set (Customized Project Supported)

Product Type : Heavy-Duty Laboratory Furniture

design style : Modern

Usage : Commercial furniture

Material : 1.0mm Cold-Rolled Steel (Epoxy Coated)

Place of Origin : GUANGDONG，CHINA

Brand Name : WINLAB®

Model Number : 002

MOQ : 1 Set (Customized Project Supported)

Price : $300 - $800/ Meter

Supply Ability : 5000 Sets / Month

application : Living Room, Office Building, Hospital, School, Leisure Facilities, Farmhouse, Other, Basement, University school, Physics laboratory, Biological laboratory, Medical laboratory, Chemistry laboratory, laboratory

Corrosion Proof : Yes

Payment Terms : L/C,T/T,Western Union

Keyword : lab bench

Feature : Resistance to corrosion, strong acid, strong alkali

material : steel and wood

type : Laboratory Furniture

Packaging Details : Export Standard Plywood Case with Inner PE Foam Protection

Product name : Lab Work Bench

Core Feature : 350kg/m² Load-bearing, High Chemical Resistance

Function : Precision Analytical Workstation

Certification : ISO9001

Delivery Time : 15 - 25 Working Days (Depends on project scale)

Contact Now

Factory Wholesale Modern Steel Wood Laboratory Construction Bench for University School Hospital Living Room Use

Future-Proof Your Laboratory

Dynamic research demands flexible spaces. The WINLAB H-Frame Modular Lab Bench combines extreme structural stability with ultimate mobility. Supported by a robust 40x60mm steel frame, this system allows you to effortlessly reconfigure your workspace. With options for suspended or mobile under-bench cabinetry, you can maximize legroom, simplify floor cleaning, and easily adapt to new equipment or expanding teams.

Customized Lab Work Bench Steel Wood Modular Lab Table For University School Hospital Living Room

Structure: Heavy-Duty H-Shape Steel Frame
Cabinet Options: 1.0mm Cold-Rolled Steel OR Eco-Friendly MDF/Wood
Mobility: Suspended (Wall-hung) or Mobile (PU Casters) Configurations
Load Capacity: Up to 300kg/m²

Why Choose H-Frame?

Engineered for the Modern Laboratory Trend

Ultimate Reconfigurability: Unlike fixed floor-mounted benches, the H-Frame system uses independent mobile or suspended cabinets. If your lab expands or changes focus, you can simply roll out the cabinets and rearrange the layout without dismantling the main bench structure.
Superior Load-Bearing: The standalone H-frame architecture evenly distributes weight, safely supporting heavy analytical equipment up to 300kg/m²
Ergonomic Legroom: By removing bulky fixed bases, lab personnel enjoy significantly more knee and legroom, ensuring comfort during long testing sessions.
Unrestricted Maintenance: Suspended or mobile cabinets eliminate dead corners on the floor, allowing for rapid and thorough hospital-grade cleaning and sterilization.

Flexible Cabinet Configurations

Tailored to Your Budget and Environment: Steel or Wood Cabinetry

We offer two premium base cabinet options, both available in mobile (with casters) or suspended designs.

Option A: Premium All-Steel Cabinets

Best for: High-moisture, heavy chemical exposure, and strictly regulated sterile environments.

Features: Double-layer door structure with soundproofing material, ultimate fire and corrosion resistance.

Option B: Eco-Friendly Wooden Cabinets

Best for: R&D offices, dry testing labs, schools, and budget-conscious projects.

Features: Edges are sealed with 2mm thick PVC for a firm, straight finish. Offers a warmer aesthetic and excellent cost-efficiency.

Technical Specifications & Hardware

Component	Specifications

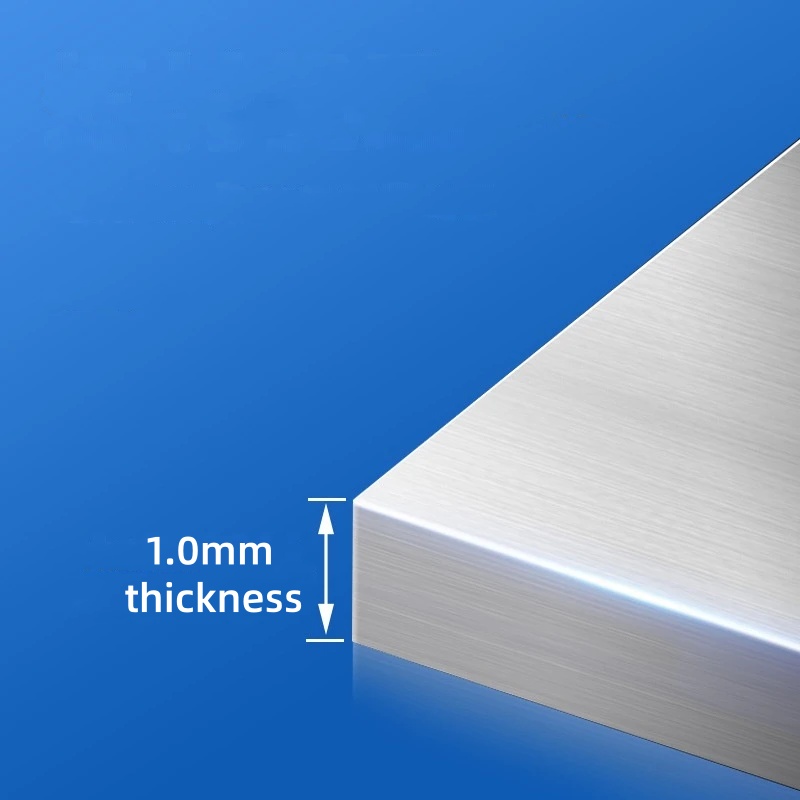

Main Cabinet Body	Constructed from premium 1.0mm thick cold-rolled steel sheets. The surface undergoes rigorous pickling and phosphating, followed by an epoxy resin electrostatic powder coating (cured at 220°C). This ensures excellent resistance to acid, alkali, and corrosion. The double-layer door design is filled with soundproofing materials for a quieter lab environment.
Knee Space Rails	Manufactured from high-quality 40×60×1.5mm cold-rolled steel, providing an ultra-stable connecting framework.
Drawer Slides	Equipped with premium DTC silent self-closing (soft-close) slides for smooth and durable operation.
Door Hinges	Features DTC 105°/175° buffer hinges or high-grade stainless steel self-closing hinges, tested for tens of thousands of continuous openings.
Casters (For Mobile Cabinets)	High-quality PU silent universal wheels with built-in brakes. Supporting up to 120kg per wheel with excellent shock absorption.

Standard Dimensions & Specifications

Note: We provide full OEM/ODM services. Custom sizes are highly welcomed based on your floor plan.

Product Category	Standard Dimensions (L × W × H)	Customization
H-Frame modular wall bench	1000 × 750 × 850/900 mm (3.28' × 2.46' × 2.78')	✅ Fully Customizable
H-Frame modular island bench	1000 × 1500 × 850/900 mm (3.28' × 4.92' × 2.78')	✅ Fully Customizable
H-Frame modular Corner Bench	1000 × 1000 × 850/900 mm (3.28' × 3.28' × 2.78')	✅ Fully Customizable

Modular Island Bench Configurations

YD-HB1

Core Structure: Heavy-duty H-Frame modular wall bench system (40×60mm steel tube)
Reagent Rack: Dual-tier steel-and-glass reagent rack for optimal vertical storage
Power Supply: Bench-mounted vertical pedestal electrical socket boxes
Hardware: Durable aluminum alloy U-shaped handles
Base Storage: Independent Mobile Cabinet Units (Optional: 1.0mm Cold-Rolled Steel OR Eco-Friendly Wood) equipped with heavy-duty PU casters

YD-HB2

Core Structure: Heavy-duty H-Frame modular island bench system
Power Supply: Tabletop-mounted pedestal electrical sockets
Plumbing: Laboratory-grade copper water faucet and chemical-resistant PP sink
Gas/Air Supply: Single-port laboratory-grade benchtop valve
Hardware: Sleek aluminum alloy linear handles
Base Storage: Freely configurable Mobile Cabinet Units (Steel/Wood optional) with lockable silent wheels for easy lab reconfiguration

YD-HB3

Core Structure: Heavy-duty H-Frame modular wall bench system
Overhead Storage: Wall-mounted closed cabinetry (Steel/Wood optional) for secure upper storage
Power Supply: Tabletop-mounted pedestal electrical sockets
Hardware: Anti-corrosion stainless steel U-shaped handles
Base Storage A: High-capacity 4-drawer Mobile Cabinet Unit
Base Storage B: Double-door, double-drawer Mobile Cabinet Unit (Easily rolled out for deep floor cleaning)

YD-HLB4

Core Structure: Heavy-duty H-Frame modular island bench system
Overhead Storage: Suspended wall cabinets integrated directly into the central rack structure
Reagent Rack: Integrated structural steel columns supporting adjustable shelving
Power Supply: Electrical outlets seamlessly integrated into the rack columns
Hardware: Ergonomic aluminum alloy inner-buckle (recessed) handles
Base Storage: Under-bench Mobile Cabinet Units (Steel/Wood optional), providing maximum ergonomic legroom when moved

YD-HLB5

Core Structure: Heavy-duty H-Frame modular island bench system
Reagent Rack: Integrated structural steel columns with adjustable shelves
Power Supply: Electrical outlets seamlessly integrated into the rack columns
Gas/Air Supply: Desktop-mounted double-port laboratory gas/air valve
Hardware: Durable aluminum alloy exposed linear handles
Base Storage: Multi-functional Mobile Cabinet Units (Steel/Wood optional), allowing lab personnel to customize their workstation layout instantly

YD-HLB6

Core Structure: Heavy-duty H-Frame modular island bench system
Reagent Rack: All-steel column reagent rack with adjustable tempered glass shelves
Power Supply: Bench-mounted pedestal electrical outlets
Wash Area: Integrated end-sink configuration with dedicated fixed under-sink base for plumbing security
Base Storage: Accompanying Mobile Cabinet Units (Steel/Wood optional) for flexible dry storage
Plumbing & Accessories: Epoxy-coated gooseneck water faucet, high-resistance PP sink, and detachable high-density PP pegboard

Unsure which configuration fits your lab?

Send us your laboratory floor plan (CAD/PDF). Our senior engineers will provide a Free 3D Layout Design & Quotation within 24 hours.
